CMC

BENEFITS

  • According to NFF 61030 standard
  • High dynamic applications
  • Ruggedized hybrid: signal/optic/data connector
  • Field-proven solution from metro to high-speed train

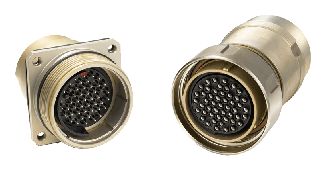

DESCRIPTION

  • Aluminum or bronze connector with screw locking
  • From 4 to 61 crimp contacts over 6 shells and 22 configurations
  • Crimp solid contacts, coax twinax, quadrax cell or
  • optical EMI/RFI shielding protection

MAIN CHARACTERISTICS

  • Rated current: from 15 to 250 A
  • Service voltage: up to 500 V
  • Withstand voltage: 2550 V or 3250 V
  • Protection index: IP66
  • Salt spray: 96 hours or 500 hours
  • Temperature range: -50ºC +100ºC
  • Vibrations and shocks: EN61373 category 1B



Location

APPLICATIONS

  • INTER-VEHICLE
  • TRACTION POWER
  • TRAIN CONTROL
  • SUB SYSTEMS

FUNCTIONS

  • PROPULSION & BRAKING
  • AUXILIARY POWER SUPPLY
  • INTER-VEHICLE

STANDARDS

  • NFF 61030
  • DIN 5510
  • UNICEI 11170
  • UL94
