SRC

BENEFITS

  • Quick positive locking system
  • NF F 61030 standard compliant
  • Broad range of accessories
  • Field-proven

DESCRIPTION

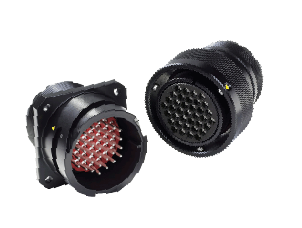

  • Aluminum connector with bayonet locking system
  • From 6 to 60 crimp contacts over 9 shells and 11 configurations
  • Crimp solid contacts AWG16, 12 and 8
  • Connector design based on the MIL DTL 5015 & VG95234 specifications

MAIN CHARACTERISTICS

  • Rated current: from 17 to 45 A
  • Service voltage: up to 500 V
  • Withstand voltage: up to 3250 V
  • Protection index: IP66
  • Salt spray: 250 or 500 hours
  • Temperature range: -40ºC +100ºC



Location

APPLICATIONS

  • TRAIN CONTROL
  • PIS & SAFETY
  • SUB SYSTEMS

FUNCTIONS

  • CAB CONTROL
  • TRAIN CONTROL
  • AIR CONDITIONING
  • DOORS

STANDARDS

  • NFF 61030
  • UL94
