FXP

Benefits

  • Designed according to EN50467
  •  Unshielded and shielded cables
  • Static and dynamic applications
  • Over voltage safety features (i.e Permanent Magnet
    Motor)
  •  Light, compact and high electrical performances
  •  Halogen-free



Description

  •  Locking system with captive screws
  •  Crimp contacts: cable cross-section from 10 to 120 mm²
  • Copper and aluminum cables



Main characteristics

  • Rated current: up to 400A
  •  Service voltage :
    •  Up 3000V (OV2PD3 & OV3PD2 according to EN50467)
    • Up 4000V (OV2PD2 according to EN50467)
  • Protection index: IP68
  • Service temperature: -40ºC / +100ºC
  • Salt spray resistance: 500 hours

NEW MOTOR GENERATION :

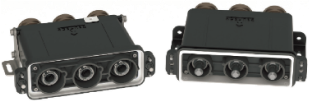

New Connector Generation

The next evolution in electric motor use is the Permanent Magnet (PM) Motor



  • Uses less energy
  • Facilitates motor cooling
  • Improves motor performance
  • Reduces vehicle life-cycle costs
  • Shifts braking power from the mechanical to the electrical system

Benefits

  • Standard platform
  • Modularity
  • EN & WW F&S compliant resin
  • Compact: space saving
  • Field proven
  • Few components (50)
  • Flexible installation
  • Easy maintenance
  • Protective against return currents

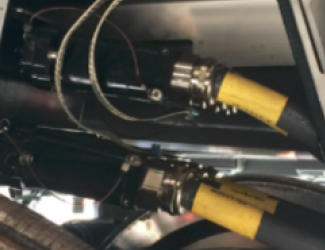

Location

APPLICATIONS

  • INTER-VEHICLE
  • TRACTION POWER

FUNCTIONS

  • PROPULSION & BRAKING
  • AUXILIARY POWER SUPPLY
  • INTER-VEHICLE

STANDARDS

  • EN 50467
  • NFF 61030
  • EN 45545
  • DIN 5510
  • UNICEI 11170
  • UL94
