Benefit

  • Rackable and panel system
  • Increased safety during operation
  • According to railway standard
  • Misalignment tolerance ±2mm

Description

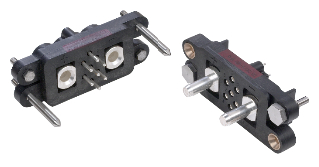

  • Rackable power connector
  • Fixed socket and floating plug
  • 2 power contacts for terminal lugs - Caliber 14 / M10 threaded or Caliber 18 / M12 threaded
  • 7 auxiliary crimp contacts Ø4

Main Characteristics

  • Rated current: – 350 A (Ø14) – 500 A (Ø18) and pilots 30 A (Ø4)
  • Service voltage: 700 V DC
  • Withstand voltage: 3500 V
  • Temperature range: -40ºC, +100ºC

Location

APPLICATIONS

  • SUB SYSTEMS

FUNCTIONS

  • BATTERY

STANDARDS

  • NFF 61030
  • EN 45545
  • UL94
