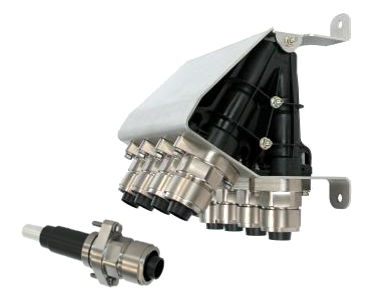

EKO A

BENEFITS

  • Modular and dynamic applications
  • Flexible assembling process
  • High level of performance
  • Compact and weight-saving
  • Halogen free
  • Field-proven

DESCRIPTION

  • Modular connector from 2 to 8 angled modules into metal frame
  • Locking system by 2 captive screws
  • Crimp contacts caliber 12 and 20 in silver plated brass
  • Cable cross-section from 50 to 240 mm²

MAIN CHARACTERISTICS

  • Rated current: up to 700 A
  • Service voltage: up to 3000V DC/AC
  • Withstand voltage > 9,5 kV
  • Protection index: IP 66
  • Salt spray: 96 hours or 500 hours
  • Temperature range: -40ºC, +100ºC
  • Vibrations and shocks: EN 61373 category 1 class A



Location

APPLICATIONS

  • INTER-VEHICLE

FUNCTIONS

  • INTER-VEHICLE

STANDARDS

  • NFF 61030
  • EN 45545
  • DIN 5510
  • UNICEI 11170
  • UL94
