Solutions for mobility

RAILWAY ROLLING STOCK

MILITARY

SHIPYARD

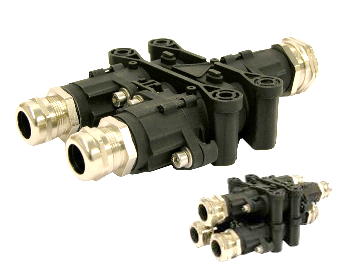

WYE

BENEFITS

  • Modular and stackable
  • Compact and weight-saving
  • Halogen free

DESCRIPTION

  • Single pole power derivation in composite, locking
  • system by captive screws
  • 1 input / 2 outputs
  • Cable cross-section: from 35 to 120 mm²
  • 6 keying positions

MAIN CHARACTERISTICS

  • Rated current: 400 A max. (with cable 120 mm²)
  • Service voltage: 3000 V
  • Withstand voltage: 9500 V
  • Protection index: IP66
  • Salt spray: 500 hours
  • Temperature range: -40ºC, +100ºC
  • Vibrations and shocks: EN 61-373 category 2



Location

APPLICATIONS

  • TRACTION POWER

FUNCTIONS

  • PROPULSION & BRAKING
  • AUXILIARY POWER SUPPLY

STANDARDS

  • EN 50467
  • NFF 61030
  • EN 45545
  • DIN 5510
  • UNICEI 11170
  • UL94
